MC7132 15.6-Inch Ward Door Station - 翻译中...

Caractéristiques

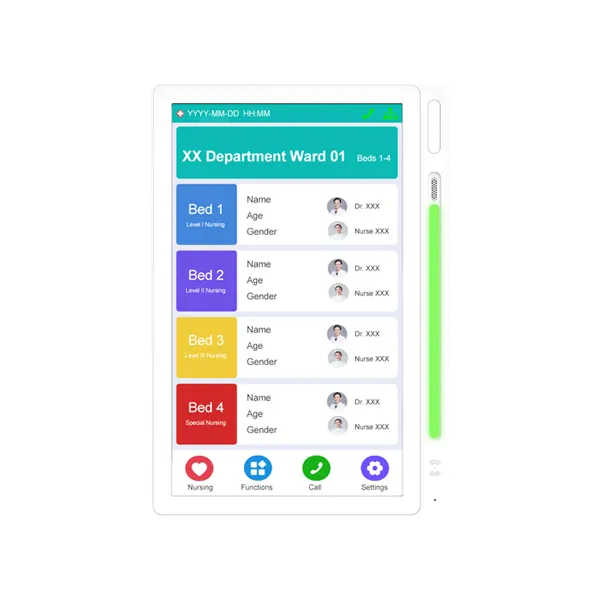

● Clear Ward Information Display: Displays ward number, patient information, nursing status, and other relevant details clearly for medical staff and visitors.
● HD Touchscreen Interface: Available with 10" or 15.6" capacitive touchscreen, providing smooth operation and excellent visual clarity.
● Two-way Voice Communication: Supports voice intercom with the nurse station for convenient communication and rapid response.
● Emergency Alarm Integration: Supports external emergency buttons or alarm inputs, enabling quick reporting of urgent situations.
● RGB Status Indicator: Equipped with an RGB three-color indicator light to display different ward statuses such as call requests or alarms.
● Network-based Communication: Adopts IP network communication for reliable data transmission and easy system expansion.
● Door Light Linkage: Supports connection with corridor door lights to provide clear visual call indications.
● Stable and Reliable Design: Industrial-grade hardware design ensures stable and continuous operation in hospital environments.

Contacter maintenant Laisser un message Télécharger

Introduction
Spécification

翻译中...

Model	MC7131	MC7132
Screen Size	10"	15.6"
Resolution	1280 × 800 px	1920 × 1080 px
Main Chip	Quad-core Cortex™-A53, 1.8 GHz
Memory	1GB
Storage	8GB
Video Formats	MP4, AVI, MKV, MOV
Audio Formats	MP3, AAC, WAV
Image Formats	JPEG, PNG
Network	10/100 Mbps adaptive
Communication Protocols	TCP, UDP, RTP, ARP, IGMP, HTTP, SIP
Interfaces	Power interface ×1, RJ45 ×1, Flashing switch ×1, Type-C ×1, Serial port ×1, RS-485 interface ×1, Switch signal ×1 (optional), Alarm input ×2
Other Features	RGB three-color indicator light (configurable to multiple colors); Supports IC card, Bluetooth, and WiFi (optional); Bluetooth: version 4.0 or above; WiFi: supports 2.4 GHz band; External hardware watchdog to prevent system crashes
Touch Control	Capacitive touchscreen, supporting 10-point touch and operation with gloves
Operating System	Android10
Working Voltage	DC 18–24V or standard PoE
Standby Power Consumption	< 5 W	< 6 W
Working Power Consumption	< 7 W	< 10 W
Operating Temperature	-40℃～+65℃
Installation Method	Wall-mounted installation
Package Dimensions	270 × 190 × 33 mm	430 × 270 × 45 mm
Product Dimensions	265 × 176 × 20.68 mm	377 × 247 × 21 mm
Net Weight	0.7 kg	1.85 kg
Gross Weight	0.8 kg	1.95 kg
