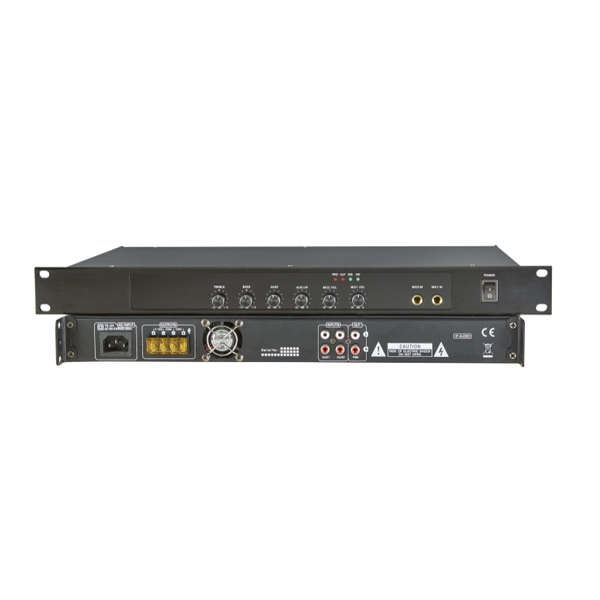

DPA500/DPA750/DPA1000 1U 500W/750W/1000W Mixer Amplifier with 2 MIC & 2 AUX Inpu...

Caractéristiques

● New aluminum alloy front panel with front-to-rear airflow cooling design
● Class D power amplifier with SMPS (Switch Mode Power Supply)
● Efficient cooling with aluminum heat sink and front-to-rear fan system
● Temperature sensor with automatic fan speed control (low/high)
● Intelligent full-range electronic circuit protection with fault indicators
● Front panel indicators for signal level and operating status
● 4 audio inputs: 2 line inputs and 2 standard microphone inputs
● 1 audio output for cascading to additional amplifiers
● Offers 4–16Ω constant impedance output and 100V constant voltage output for versatile use.

Contacter maintenant Laisser un message Télécharger

Introduction
Spécification

翻译中...

Model	DPA500	DPA750		DPA1000	DPA1200	DPA1500	DPA2000
Rated Power*	500W	750W		1000W	1200W	1500W	2000W
Output Method	100V & 4-16Ω
Line Output	＞0.775V (0dB), Unbalanced
Frequency Response	80Hz-16kHz
THD	≤0.1%
SNR	AUX1/AUX2 Input: ≥96dB(A-weighted) MIC Input: 66dB(A-weighted)
Line Input Sensitivity	350mV
Line Input Impedance	10kΩ, Unbalanced Input
Mic Input Sensitivity	5mV
Mic Input Impedance	600Ω, Unbalanced Input
Audio Interface	2 × RCA Standard Signal Inputs 2 × 6.35mm Standard Microphone Inputs
Tone (Treble)	+10dB at 10kHz
Tone (Bass)	+10dB at 10kHz
Overall Efficiency	75%
Power Supply	AC200-250V/50Hz
Power Consumption	500W		670W	1340W	1600W	2000W	2500W
Cooling Method	Front-to-Rear Airflow with Aluminum Heat Sink and Fan, Auto-Adjusting Fan Speed
Product Dimensions (L×W×H)	260×483×45mm
Package Dimensions (L×W×H)	350×550×90mm
Net Weight	3.4kg		3.4kg	3.4kg	4.2kg	4.2kg	4.2kg
Gross Weight	4.5kg		4.5kg	4.5kg	5.3kg	5.3kg	5.3kg
Note: Power ratings marked with “*” are measured using a 20ms, 1kHz sine wave pulse at 1% THD.
