PL206 Passive Line Array Full-Range Speaker - 翻译中...

Caractéristiques

● Features two high-power 6.5-inch woofers and one 44 mm compression driver, integrated with a precision crossover network for optimized acoustic performance.
● The cabinet is made of professional-grade high-density plywood and finished with a wear-resistant polyurea coating, making it suitable for various indoor venues such as auditoriums and multifunction halls.
● Quick angle-adjustment mechanisms on both sides of the cabinet enable fast flying or stacking of multiple units, forming continuous array coverage for long-distance and uniform sound distribution.

Contacter maintenant Laisser un message Télécharger

Introduction
Spécification

翻译中...

Model	PL206
System Configuration	2×6.5" LF, 1×1.75" HF
Frequency Response (±3dB)	150Hz–18kHz
Sensitivity	95±2dB
MAX. SPL	119±2dB
Input Impedance	8Ω
Rated Power	300W
Coverage (H×V)	120°×20°
Dimensions (H×W×D)	196×570×290mm
Net Weight	14.2kg

PREV: PL210 Passive Line Array Full-Range Speaker - 翻译中...

PROCHAIN: PL208 Passive Line Array Full-Range Speaker - 翻译中...

Relate les produits

LA1531T Ultra Mince Ligne Array Haut-parleurNovember 29, 2016view
PL210 Passive Line Array Full-Range Speaker - 翻译中...March 27, 2026The PL210 is a high-performance line array module designed to deliver powerful sound reinforcement with excellent clarity and balance across a wide frequency range of 50 Hz to 18 kHz.It is equipped wi...view
Système de haut-parleurs à matrice de colonne professionnelle LA-4530S LA-4530November 1, 2024Le haut-parleur complet de la gamme LA-4530 utilise des pilotes de gamme complète en ferrite 4 × 4.5 "avec des bobines vocales de 35mm et un tweeter à dôme de 25mm, avec un crossover passif intégré. Les pilotes des 4.5 sont équipés du...view

«
1 ...
12
13
14
15
16
17
18
... 20
»

Laisser un message Nous envoyer un courriel

Nous vous contacterons dans les 24 heures.

Nouvelles connexes

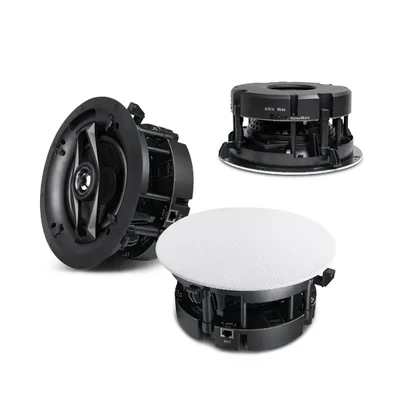

How to Choose the Right Ceiling Speaker for Indoor and Outdoor Applications - 翻译中...August 19, 2026IntroductionSelecting a ceiling speaker is not only an aesthetic decision but also an acoustic engineering decision. In commercial audio systems, incorrect speaker selection can lead to uneven sound c...view
