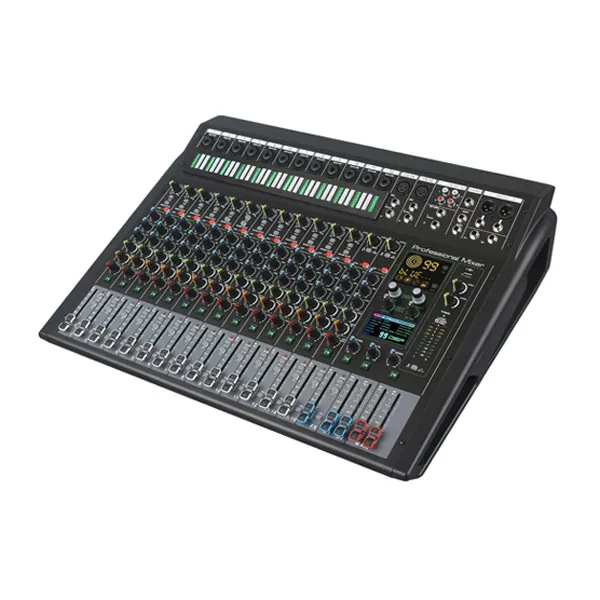

PM216 16-Channel Analog Mixer - 翻译中...

Caractéristiques

● 14-channel XLR balanced mono inputs and 2 stereo inputs.
● 12 independent PAD attenuation switches.
● Independent noise gate switch for each input channel.
● Independent 48V phantom power switch for each input channel.
● 3-band equalizer control for each input channel.
● 2 AUX SEND outputs.
● Built-in DSP effects processor with 100 presets.
● 12 microphone input channels with independent 1*10-segment LED level meters for channel level monitoring.
● Built-in USB audio playback function, supporting a variety of formats, including WAV, WMA, APE, FLAC, and MP3.
● Dual-channel headphone monitoring.
● 2*10-segment LED level meters with pre-monitoring levels: [-20, -15, -10, -7, -4, -2, -0, +2, +4, +6 dB].
● 2 GROUP OUT outputs.
● Dual-channel MAIN OUT stereo output.
● High-reliability 60mm smooth-travel faders.

Contacter maintenant Laisser un message Télécharger

Introduction
Spécification

翻译中...

Model	PM208	PM212	PM216
Maximum Output Level	12dB
S/N Ratio	≥83dB (1MV IN 1V OUT)
THD	≤0.02% @ 0dB 1KHz
Frequency Response	20Hz~20KHz±0.5dB
Channel Crosstalk	<-75dB @ 1KHz
MIC IN Impedance	600Ω
LINE IN Impedance	10KΩ
Output Impedance	100Ω
MIC IN	-60dB
LINE IN	-40dB
Stereo IN Impedance	10KΩ
Channel Gain Control	-30dB
3-Band Equalizer Adjustment Range	±15dB
HIGH	12KHz
MID	4KHz
LOW	80Hz
Power Supply Output Power	30W
Power Supply Voltage	100V-240V/50Hz
Package Dimensions (1 pc)	424×176×526(mm)	538×176×526(mm)	648×176×526(mm)
Product Dimensions	370×450×125(mm)	480×450×125(mm)	590×450×125(mm)
Gross Weight (1 pc)	6.5KG	7.2KG	8.5KG
Net Weight	4.35KG	5.6KG	6.9KG

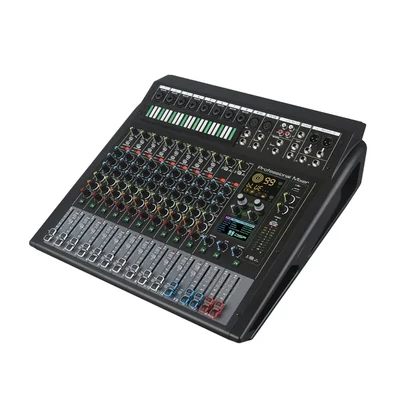

PREV: PM212 12-Channel Analog Mixer - 翻译中...
